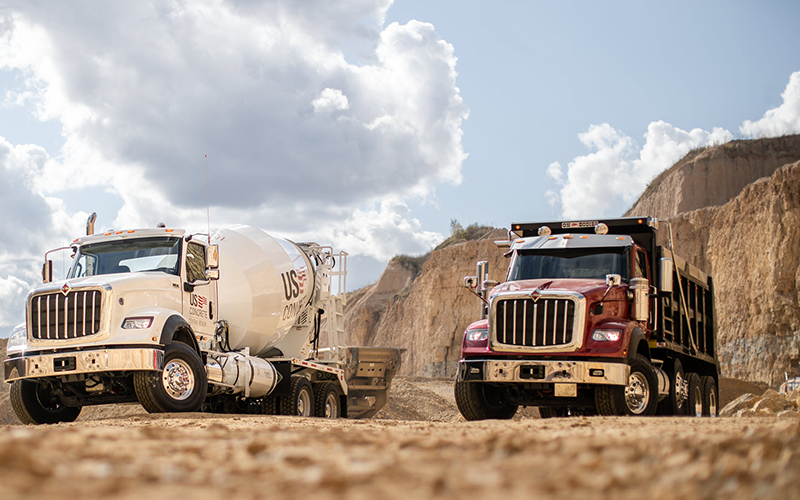

International HX™ SERIES

Category: Last Updated: 07/17/2023 07:02 PM

Make & Model

Detailed Specification

SEVERE DUTY
52,000 - 92,000 lbs.
6x4, 8x6
Diamond, Diamond Elite
Day Cab, 56" Low and High Sleeper Cabs, 73" High Sleeper Cab
Cummins- X15 15L:HX520 / HX620: 430-605 HP, 1650-2050 lb-ft. torque, International- A26 :HX520 / HX620: 370-515 HP, 1350-1850 lb-ft. torque
Switchback After Treatment Device:Single or Dual Vertical Stacks, Vertical After Treatment Device:Single Vertical Stack
Heat Treated Alloy Steel 120,000 PSI
HX520 - Meritor: 12,000 - 20,000 lbs., HX620 SBA - Dana: 16,000 - 22,000 lbs. - Meritor: 12,000 - 22,000 lbs.
HX520 - Multi-leaf: 20,000 lbs. - Parabolic Taper-leaf: 12,000 - 20,000 lbs., HX620 - Multi-leaf: 14,000 - 23,000 lbs. - Parabolic Taper-leaf: 13,200 - 22,000 lbs. - Slipper- Type: 20,000 - 24,000 lbs.
Tandem Rear Axles - Dana: 40,000 - 52,000 lbs. Single and Two Speed - Meritor: 40,000 - 70,000 lbs. Single and Double Reduction, Tridem Rear Axles - Meritor: 53,000 - 69,000 lbs.
Spring Suspensions - Chalmers: 40,000 - 52,000 lbs. - Hendrickson HAULMAAX EX: 40,000 -52,000 lbs. - Hendrickson R, RT: 40,000 - 80,000 lbs., Air Suspensions - Hendrickson HAS: 40,000 - 46,000 lbs. 55" and 60" spacing - Hendrickson PRIMAAX- EX: 46,000 - 52,000 lbs. 55", 60", 72",spacing - Hendrickson PAX Tridem: 69,000 lbs.
Manual:Eaton: 8LL (10), 9ALL (11), 13, 18 speed, Automated Manual:Eaton UltraShift PLUS: 8LL (10), 9ALL (11), 13, 18 speed Eaton Fuller Advantage: 10 speed, Automatic: Allison EVS, RDS, OFS Series,
Delco Remy:165 - 300 amp., Leece-Neville:160 - 240 amp.
1,980 - 3,800 CCA's
Traction Control Electronic Stability Control (ESP) Bendix- Wingman- Advanced and Bendix- Wingman- Fusion
60 - 240 Gallons, Single or Dual, Polished or Non-Polished LH Mounted Under Cab or Dual Under Cab or Back of Cab 24" or 26" Diameter
International® S13 12.74L :- 400 – 515 hp and 1,450 – 1,850 lb.-ft. torque, International® T14:- 14-speed automated manual transmission with 2 crawler gears, Dual Stage Aftertreatment:- Two DEF injectors, dual stage catalysts with upstream and midstream DEF dosing

Description

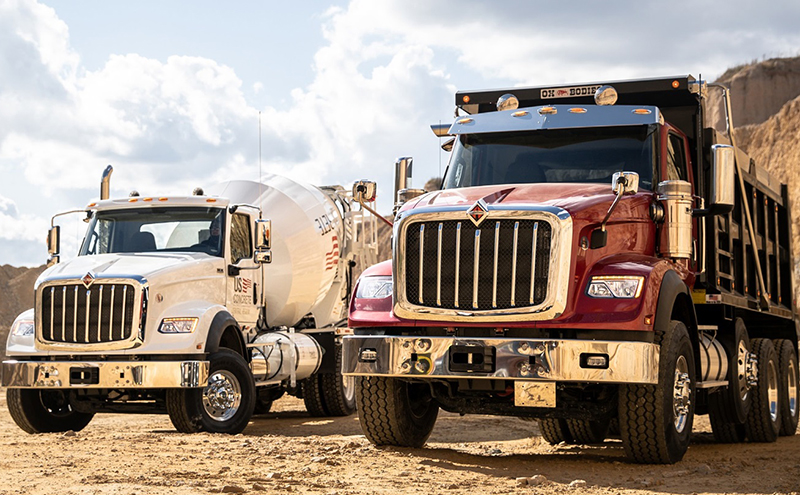

INTRODUCING THE NEW INTERNATIONAL®
HX® SERIES. BUILT AROUND YOU.
Two all new models engineered to take on the most punishing of job site, and ask for more.
