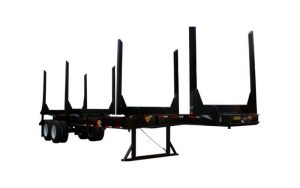

Viking Specialized Trailers V4B40PF
| Manufacturer: Viking Specialized Trailers |
Make & Model
Detailed Specification
40' long x 102" wide (at the beams)
12600 lbs. +/- 3%
80000 lbs.
16” Fabricated main beams with 7/16” x 5” top flange, 1/2” x 5” bottom flange, 1/2” x 5” top flange, 5/8” x 5” bottom flange in the neck with 1/4” web (lightweight model 3/8” x 5” top and bottom flange, 3/8” x 5” top 1/2” x5” bottom flange in the neck with 3/16” web) welded on both sides. All flange and web material is high strength steel.
8” x 8.5# Structural channel.
2″ SAE kingpin, 3/8″ kingpin plate, 20″ kingpin setting (standard).
Watson-Chalin® 50,000 Lb. 7 leaf single point spring suspension.
(2) 25,000 Lb., 5” round, 5/8” wall.
16-1/2” x 7”, Type 30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.
8.25 x 24.5, Steel 10 hole disc, hub piloted (color: white).
11R x 24.5 Radials.
Winch back 5-1/2” pipe (for lightweight winch back 2” x 4” reinforced tubing)
Shotblasted and painted black with a high solid polyurethane paint.
None, 1/4” smooth plate over kingpin and tandem areas.
7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn.
Straight frame without 4″ drop center,
Additional trailer length (per foot),
Airlift axle for single point or air ride suspensions,
Watson-Chalin air ride suspensions,
HUTCH three point suspension,
Vulcan single point load cells (L03) mounted,
Vulcan V-200 or V-500 trailer electronics,
Full width and full height front bulkhead,
Polished finish aluminum wheels (saves 352 lbs.),
Machine finish aluminum wheels (saves 352 lbs.),
Grapple bar.
Description

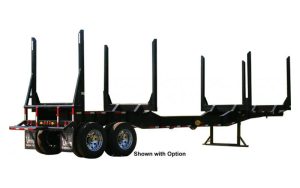

The Viking Plantation 4-Bolster combines every manufacturing quality that makes up the Viking name. Designed to haul a variety of harvested timber. Capacity: 80,000 lb. GVWR.
