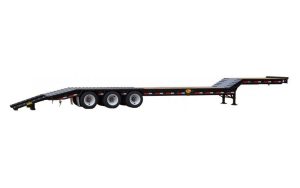

Viking Specialized Trailers VDD46R16F35T
| Manufacturer: Viking Specialized Trailers |
Make & Model
Detailed Specification
35 Ton
46' long x 102" wide
41" rear deck height
28'-6" flat load deck area
15600 lbs. +/- 3%
86000 lb.
16″ Fabricated main beams, 1/2” x 6” top flange, 3/4” x 6” bottom flange with 1/4” web welded on both sides. All flange and web material is high strength steel.
8″ x 6.5# Jr. I beam on 20″ centers.
2″ SAE kingpin, 3/8″ kingpin plate, 84” swing clearance, 20″ kingpin setting.
12 x 20.7# Structural channel
8 x 8.5# structural channel on the neck.
HUTCH® H9700T three point spring suspension with hi-arch heavy duty 3 leaf springs.
(2) 25,000 lb., 5” round, 5/8” wall.
16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.
8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).
255/70R x 22.5 Radials.
2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard).
Shotblasted and painted with a high solid polyurethane paint. Colors: black or red (standard).
2″ Nominal oak (standard), 1/4” tread plate with 1” traction bars over tandems and 1/4” tread plate on motor grader ramps.
7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn.
Description
The 35 Ton “Skidder” is one of the most versatile trailers on the market. Though designed specifically for the Log Skidders used in the forestry and logging industry, this trailer is versatile enough to accommodate a variety of heavy equipment. The Skidder trailer has proven itself in the Construction and Petroleum industry as well as the Forestry industry as a first choice for transporting equipment and materials from jobsite to jobsite. Capacity: 86,000 lb. GVWR.
